LAMP, Storage Box: Removal: Lamp
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.

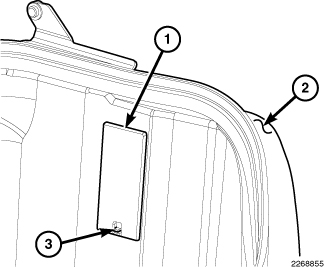

- Open the storage bin lid to locate the lamp (1) on the front or rear end panel (2) of the bin.
- Lift the lamp latch tab (3) upward while pulling the bottom of the lamp away from the bin end panel.
- Pull the bottom of the lamp out of the mounting hole in the bin far enough to pull it downward to disengage the lamp interlocking tab mounting feature from the upper edge of the mounting hole.
- Pull the lamp out of the mounting hole far enough to access the lamp wiring and bulb socket on the top of the lamp housing.
- Firmly grasp the socket and rotate it counterclockwise about 30 degrees to unlock it.
- Pull the socket and bulb straight out from the keyed opening in the lamp housing.
- Remove the lamp from the storage bin.
