LAMP, Storage Box: Removal: Bulb
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

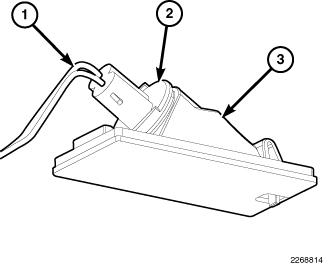

- Remove the lamp (3) from the mounting hole in the end panel of the storage bin. Refer to LAMP, Storage Box , Removal .
- Pull the lamp into the storage bin far enough to access the lamp wiring (1) and bulb socket (2) on the top of the lamp housing.
- Firmly grasp the socket and rotate it counterclockwise about 30 degrees to unlock it.
- Pull the socket and bulb straight out from the keyed opening in the lamp housing.
- Pull the base of the bulb straight out of the socket.
