LAMP, Bezel, Center: Installation: Lamp
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

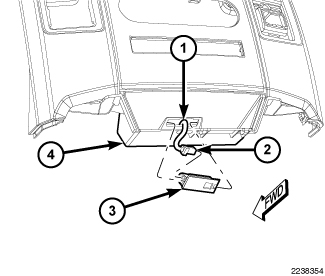

- Position the center bezel lamp unit (3) through the lower opening of the instrument panel center bezel (4) over the center floor console forward storage bin.
- Reconnect the instrument panel wire harness (1) connector (2) to the lamp connector receptacle.
- Engage the fixed lamp retainer with the left edge of the mounting hole in the roof of the center bezel opening.
- Push the right end of the lamp upward until the lamp latch feature on the end of the lamp housing nearest the lens snaps into the mounting hole.
- Reconnect the battery negative cable.
