Switch, Power Top, Luggage Protector Position: Installation: Installation

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

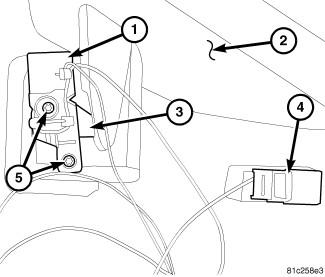

Fig 1: Right Trunk Trim Panel
GC0121135Courtesy of CHRYSLER GROUP, LLC
  1. Position the luggage protector position switch (1) onto the right trunk trim panel (2). Ensure the switch sensing tab (3) is located in the trim panel slot.
  2. Install the two retaining screws (5).
  3. Connect the switch electrical connector (4).
  4. Install the right trunk trim panel.
  5. Install the rear trunk trim panel.
  6. Close the rear decklid.
  7. Connect the battery negative cable.
