Module, Compass: Removal: Removal

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

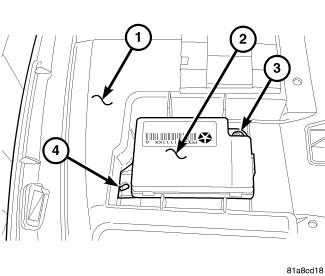

Fig 1: View Of Remote Compass Module (RCM)
GC0121087Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the Instrument Panel (IP) top pad to gain access to the Remote Compass Module (RCM) (2). for the appropriate procedure. Refer to PAD, INSTRUMENT PANEL, REMOVAL .
  3. Remove the retaining screw (3) securing the RCM (2) to the IP (1).
  4. Pull the RCM rearward to release the mounting tab from the slot in the IP (4)
  5. Disconnect the RCM electrical connector.
  6. Remove the RCM (2) from the vehicle.
