Siren, Export: Installation: Installation

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

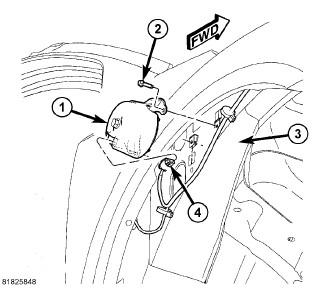

Fig 1: Siren & Retaining Screws
GC0102616Courtesy of CHRYSLER GROUP, LLC
  1. Position siren (1) on load form and install retaining screws (2).
  2. Connect the siren electrical connector (4).
  3. Install the right front wheel house splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, INSTALLATION .
  4. Reconnect the negative cable to the battery.
