Sensor, Crankshaft Position: Installation: 2.4L

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

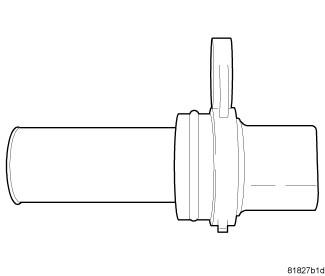

Fig 1: View Of Crankshaft Position Sensor

Courtesy of CHRYSLER GROUP, LLC

Check the O-ring for damage and lubricate the O-ring with engine oil before installing the sensor.
Use a twisting motion when installing the sensor.

Fig 2: Crankshaft Position Sensor
Courtesy of CHRYSLER GROUP, LLC
Install and tighten the crankshaft position sensor bolt to 9 N.m (79.5 in. lbs.).

Fig 3: Electrical Connector To Crankshaft Position Sensor
Courtesy of CHRYSLER GROUP, LLC
Connect and lock the electrical connector to the crankshaft position sensor.
Install the heat shield and retaining bolt.
Lower the vehicle.
Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
