Switch, Ignition: Installation: Installation
WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

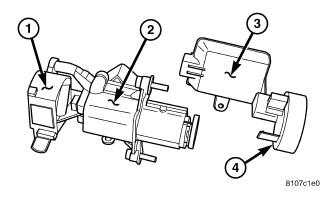

- If removed, install the ignition switch (1) to the ignition key cylinder (2).
- If removed, install the Sentry Key Immobilizer (SKREEM) module (3) to the ignition key cylinder (2).
- To install the ignition switch, follow the procedure to install the SKREEM module. Refer to MODULE, SENTRY KEY IMMOBILIZER (SKREEM), INSTALLATION .
- Connect the negative battery cable.
