Capacitor, Ignition: Installation: 2.4L

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

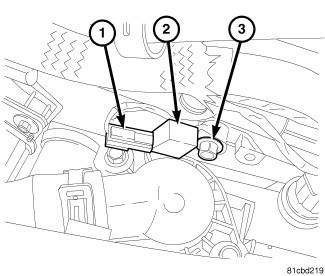

Fig 1: Ignition Capacitor
GC0084713Courtesy of CHRYSLER GROUP, LLC
  1. Install the ignition coil capacitor (2) with bolt (3) tightened to 10 N.m (88.5 ft. lbs.).
  2. Connect the electrical connector (1).
  3. Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
