Diagnostic Test

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

TEST FOR INTERMITTENT CONDITION
1. With the scan tool, record and erase DTCs.
2. Operate the Driver Door Lock Switch in all positions several times.
3. Cycle the ignition from on to off.
4. Turn the ignition on.
5. With the scan tool, read DTCs.
  Does the scan tool display B1800-DRIVER DOOR LOCK/UNLOCK SWITCH CIRCUIT PERFORMANCE?

  Yes
  - Go To 2
  No
  - The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
DRIVER DOOR LOCK SWITCH SHORTED

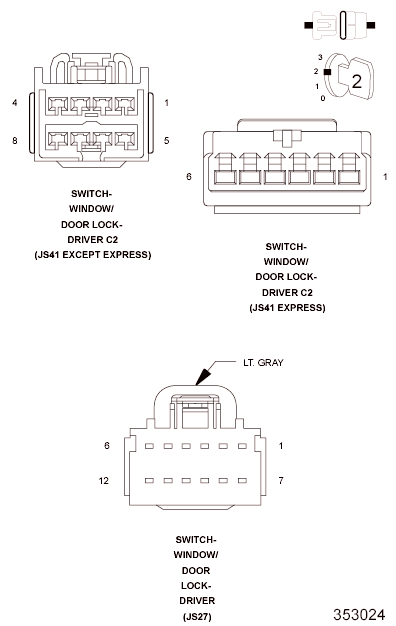

Fig 1: Checking Driver Door Lock Switch For A Short
Courtesy of CHRYSLER GROUP, LLC
1. With the scan tool, erase DTCs.
2. Disconnect the Driver Window/Door Lock Switch (JS41 - C2) connector.
3. With the scan tool, read DTCs.
  Does the scan tool display B1800-DRIVER DOOR LOCK/UNLOCK SWITCH CIRCUIT PERFORMANCE?

  No
  - Replace the Driver Window/Door Lock Switch.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  Yes
  - Go To 3
(P697) DRIVER DOOR LOCK SWITCH MUX CIRCUIT SHORT TO BATTERY

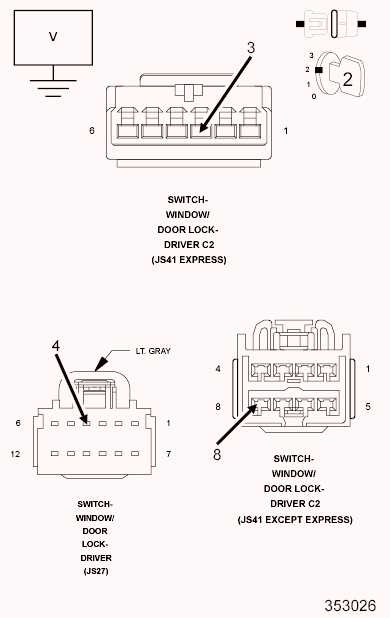

Fig 2: Checking Driver Door Lock Switch MUX Circuit For Short To Battery
Courtesy of CHRYSLER GROUP, LLC
1. Make sure the ignition is on.
2. Measure the voltage between the (P697) Driver Door Lock Switch Mux circuit and ground.
  Is the voltage above 5.02 volts?

  Yes
  - Repair the (P697) Driver Door Lock Switch Mux circuit for a short to battery.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Go To 4
(P697) DRIVER DOOR LOCK SWITCH MUX CIRCUIT SHORT TO GROUND

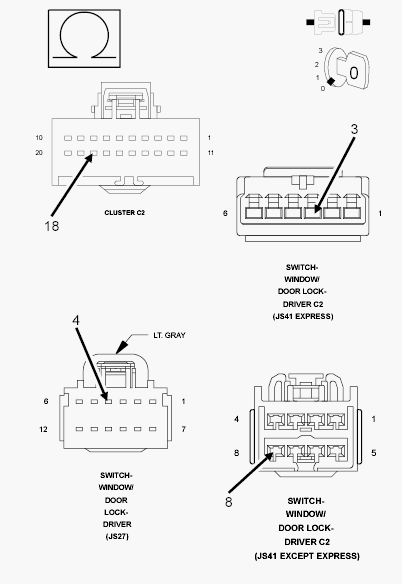

Fig 3: Checking Driver Door Lock Switch MUX Circuit For A Short To Ground
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Cluster C2 connector.
3. Measure the resistance between ground and the (P697) Driver Door Lock Switch Mux circuit.
  Is the resistance below 1, 000 Ohms?

  Yes
  - Repair the (P697) Driver Door Lock Switch Mux circuit for a short to ground.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Go To 5
(P697) DRIVER DOOR LOCK SWITCH MUX CIRCUIT OPEN

Fig 4: Checking Driver Door Lock Switch MUX Circuit For Open
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance of the (P697) Driver Door Lock Switch Mux circuit between the Cluster C2 connector and the Driver Window/Door Lock Switch connector.
  Is the resistance below 5.0 Ohms?

  No
  - Repair the (P697) Driver Door Lock Switch Mux circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  Yes
  - Replace the Instrument Cluster in accordance with service information.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
