SHIFTER, Transmission: Removal: Shifter

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Shifter Bezel Trim Ring

Courtesy of CHRYSLER LLC

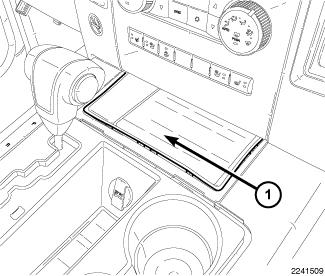

Using trim stick (special tool #C-4755, Trim Stick) or equivalent, remove the console bezel trim ring (1).

Fig 2: Console Bezel Rubber Insert
Courtesy of CHRYSLER LLC
Remove the rubber insert (1) from the console bezel.

Fig 3: Console Bezel Fasteners
Courtesy of CHRYSLER LLC

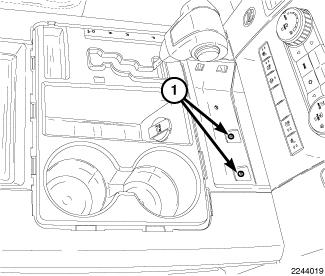

Remove the fasteners (1) at the front of the console bezel.

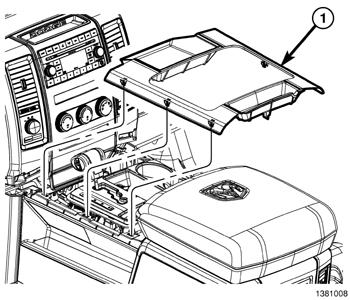

Fig 4: Console Bezel
Courtesy of CHRYSLER LLC

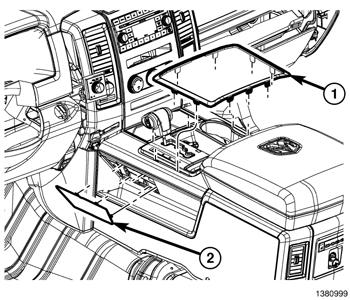

Using trim stick (special tool #C-4755, Trim Stick) or equivalent, remove console bezel (1).

Fig 5: Center Storage Tray Fasteners
Courtesy of CHRYSLER LLC

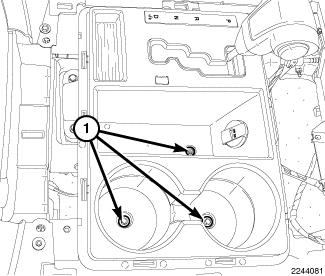

Remove the rubber liners from the center storage tray and cup holders in the console PRNDL bezel, and remove the fasteners (1).

Fig 6: Power Outlet & Shifter Harness Connectors
Courtesy of CHRYSLER LLC

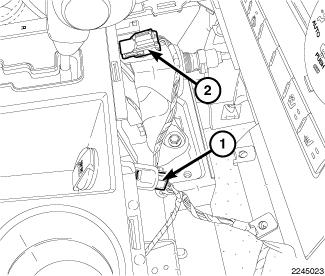

Disconnect the power outlet harness connector (1) and the shifter harness connector (2).
Place the shifter in park.

Fig 7: Shifter Assembly & Fasteners
Courtesy of CHRYSLER LLC

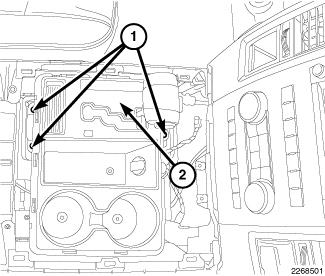

Remove the fasteners (1), and position the shifter assembly (2) so the cable end is accessible.

Fig 8: Shift Cable Retainer
Courtesy of CHRYSLER LLC

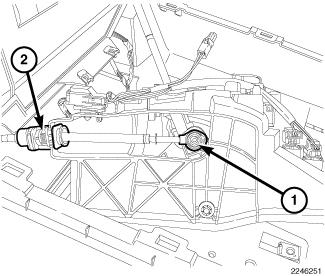

Disconnect the shift cable retainer (2) from the bracket.
Disconnect the shifter cable end (1) from the shifter lever.
Remove the shifter assembly.
