Console PRNDL Bezel

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Shifter Bezel Trim Ring

Courtesy of CHRYSLER LLC

Using trim stick (special tool #C-4755, Trim Stick) or equivalent, remove the console bezel trim ring (1).

Fig 2: Console Bezel Rubber Insert
Courtesy of CHRYSLER LLC
Remove the rubber insert (1) from the console bezel.

Fig 3: Console Bezel Fasteners
Courtesy of CHRYSLER LLC
Remove the fasteners (1) at the front of the console bezel.

Fig 4: Console Bezel
Courtesy of CHRYSLER LLC
Using trim stick (special tool #C-4755, Trim Stick) or equivalent, remove the console bezel (1).

Fig 5: Center Storage Tray Fasteners
Courtesy of CHRYSLER LLC
Remove the rubber liners from the center storage tray and cup holders in the console PRDL bezel, and remove the fasteners (1).

Fig 6: Power Outlet & Shifter Harness Connectors
Courtesy of CHRYSLER LLC
Disconnect the power outlet harness connector (1) and the shifter harness connector (2).

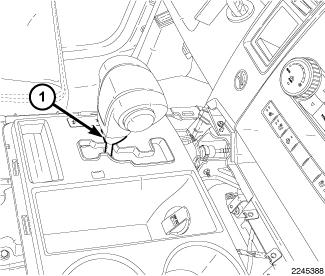

Fig 7: Shifter Knob Lower Trim Piece
Courtesy of CHRYSLER LLC
Twist the lower trim piece (1) on the base of the shifter knob counterclockwise, then push down to disengage the trim piece (1).
Remove the shifter knob.

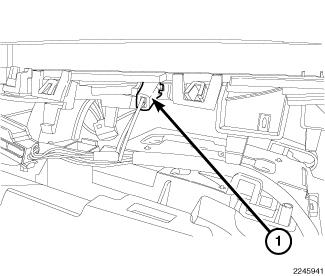

Fig 8: Shift Position Indicator Lamp Connector
Courtesy of CHRYSLER LLC
Twist the shift position indicator lamp connector (1) 1/4 turn counterclockwise, then disconnect the lamp from the console PRNDL bezel.

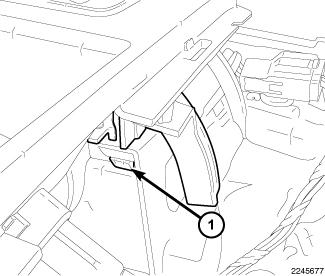

Fig 9: Console PRNDL Bezel Release Clips
Courtesy of CHRYSLER LLC
Release the clips (1) on the console PRNDL bezel, and remove the console PRNDL bezel.
