SEAL, Adapter Housing: Installation: Installation
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

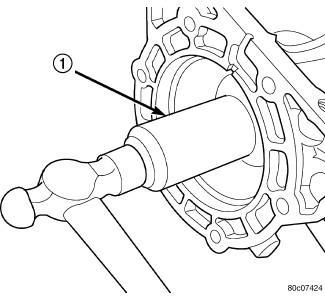

| 1 - TOOL C-3860-A |
- Clean the adapter seal bore in the adapter housing of any residue or particles remaining from the original seal.
- Install new oil seal in the adapter housing using Seal Installer (special tool #C-3860-A, Installer, Seal) (1).Refer to Fig 1. A properly installed seal is flush to the face of the seal bore.
- Install the transfer case onto the transmission.
