Adjustment Procedure

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

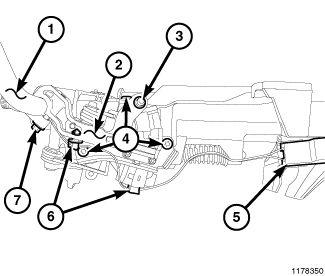

Fig 1: Gearshift Lever Assembly (2)
GC0088327Courtesy of CHRYSLER LLC

The BTSI is part of the shift lever assembly (2) and is non-adjustable.
