Torque Converter Leak Points
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

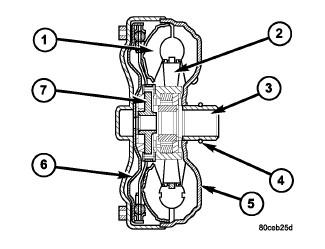

| 1 - TURBINE ASSEMBLY | 5 - IMPELLER ASSEMBLY |
| 2 - STATOR | 6 - CONVERTER CLUTCH PISTON |
| 3 - CONVERTER HUB | 7 - TURBINE HUB |
| 4 - O-RING (F EQUIPPED) |
Possible sources of converter leaks are:
- Leaks at the weld joint around the outside diameter weld.
- Leaks at the converter hub weld.
In most cases, a torque converter which is wet from transmission fluid indicates a leak at one of these areas.
