Section 468 (Charging System (Service Information)): Generator: Removal: 2.0L/2.4L

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Lower Air Dam/Belly Pan

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate negative battery cable at battery.
Remove the right front wheel.
Remove the underbody air dam.

Fig 2: Idler Pulley Location
Courtesy of CHRYSLER GROUP, LLC
Remove the accessory drive splash shield.
Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL .

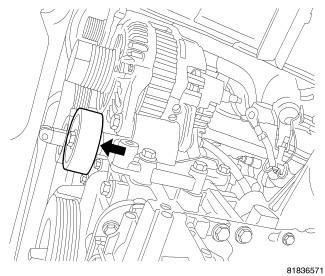

Fig 3: Idler Pulley Removal/Install
Courtesy of CHRYSLER GROUP, LLC
Remove the accessory drive idler pulley.

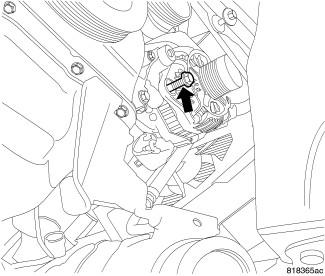

Fig 4: Lower Mounting Bolt
Courtesy of CHRYSLER GROUP, LLC
Loosen the lower mounting bolt.

Fig 5: A/C Compressor Relocation
Courtesy of CHRYSLER GROUP, LLC
Loosen the A/C compressor and relocate, pull down and to outboard side of vehicle to make room to remove generator.

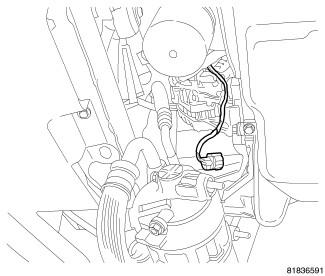

Fig 6: Field Connection
Courtesy of CHRYSLER GROUP, LLC
Unplug field circuit from generator.

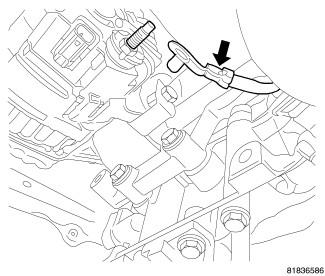

Fig 7: Battery Cable Connection
Courtesy of CHRYSLER GROUP, LLC
Remove the B+ terminal nut and wire.

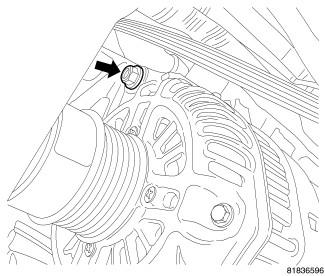

Fig 8: Upper Mounting Bolt
Courtesy of CHRYSLER GROUP, LLC
Remove the upper mounting bolt.
Remove the generator lower mounting bolt.

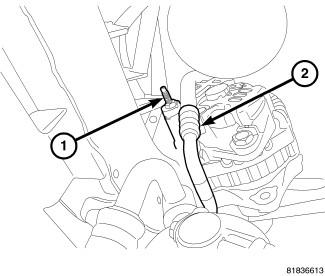

Fig 9: Battery Stud Location
Courtesy of CHRYSLER GROUP, LLC
Relocate the battery terminal (1) to the other side of the A/C line (2) for removal of the generator.

Fig 10: Rotate Generator
Courtesy of CHRYSLER GROUP, LLC
Rotate generator pulley down.

Fig 11: Generator Removal/Installation
Courtesy of CHRYSLER GROUP, LLC
Slide generator down and out of vehicle.
