B140A-Rear Left Audio Speaker Output Circuit High - Premium: Notes

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

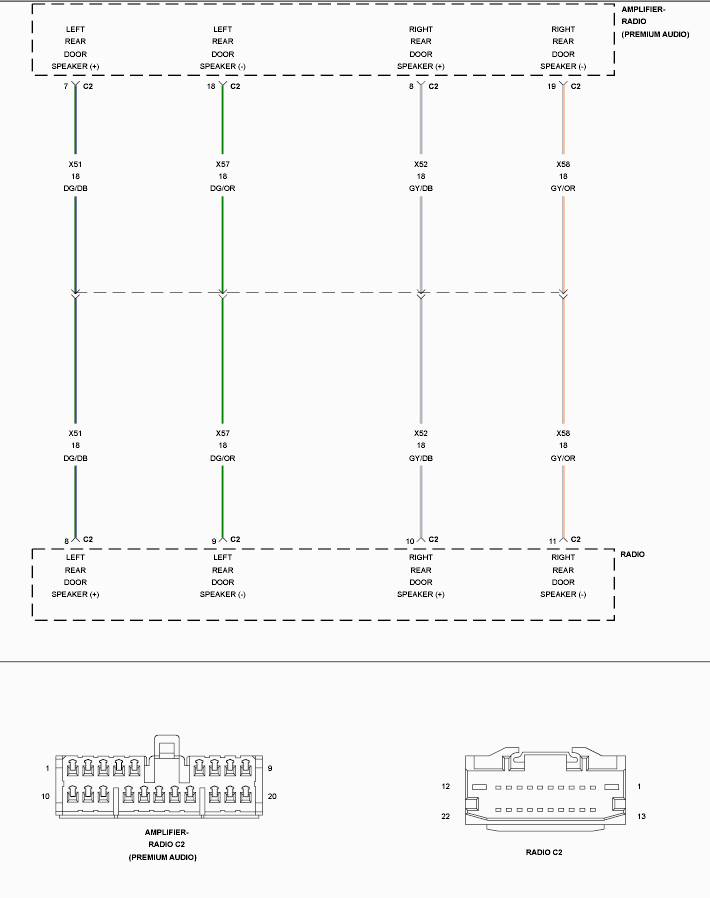

Fig 1: Rear Audio Speaker Wiring Diagram - Premium

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

NOTE:

There are two versions of the B140A DTC test. In order to select the proper test you must know if the vehicle is equipped with an Amplifier. If the vehicle is equipped with an Amplifier use the B140A-PREMIUM test. If the vehicle is not equipped with an Amplifier use the B140A-BASE test.
