Engine Firing Order - 4.7L

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

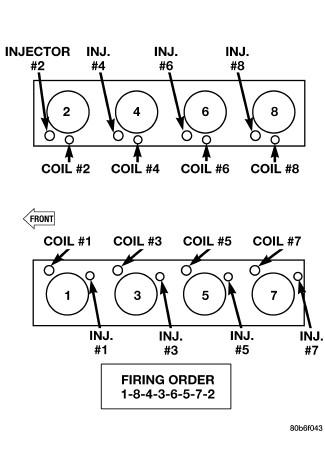

Fig 1: Identifying Engine Firing Order - 4.7L V8
GC0083486Courtesy of CHRYSLER LLC
