Engine Firing Order - 3.7L

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

1 - 6 - 5 - 4 - 3 - 2

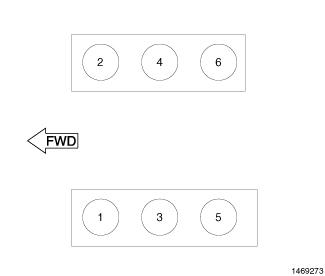

Fig 1: Engine Cylinder Arrangement - 3.7l V6
GC0087607Courtesy of CHRYSLER LLC
