SENSOR, Camshaft Position: Removal: 5.7L

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

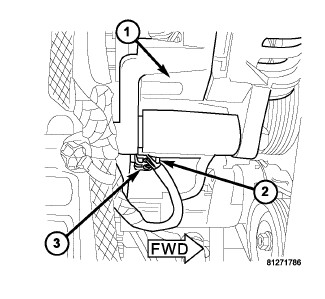

Fig 1: Locating Camshaft Position Sensor - 5.7l

Courtesy of CHRYSLER LLC

The Camshaft Position Sensor (CMP) (3) is located on right side of timing gear/chain cover below generator (1).

Disconnect electrical connector (3) at CMP sensor.

Fig 2: CMP Sensor Removal/installation - 5.7l V8
Courtesy of CHRYSLER LLC
Remove sensor mounting bolt (3).
Carefully twist sensor (2) from timing gear/chain cover.
Check condition of sensor O-ring.
