Home >> Chrysler >> 2011 >> 300 C, RWD >> Repair and Diagnosis >> External Pages >> Different car >> Section 46 (Ignition System (Service Information)) >> SENSOR, Camshaft Position >> Description >> 3.7L And 4.7L

3.7L And 4.7L

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

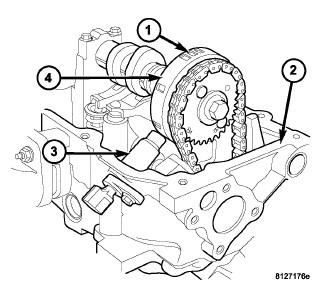

Fig 1: CMP Sensor And Tone Wheel
GC0082804Courtesy of CHRYSLER LLC

The Camshaft Position Sensor (CMP) (3) is bolted to the right-front side of the right cylinder head (2).
