Rear - Outboard

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

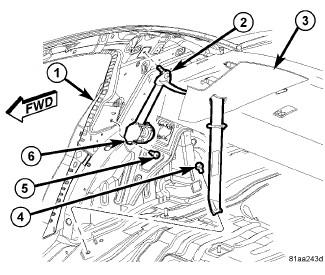

Fig 1: Removing/Installing Rear Seat Belt Retractor
GC0122067Courtesy of CHRYSLER GROUP, LLC
  1. Place retractor and belt (6) into position in quarter panel (1).
  2. Install bolt (5) and tighten bolt to 52 N.m (38.5 ft. lbs.).
  3. Route seat belt webbing through upper trim panel.
  4. Install bolt attaching turning loop (2) to quarter panel (1). Tighten bolt to 52 N.m (38.5 ft. lbs.).
  5. Install lower quarter trim panels. Refer to PANEL, QUARTER TRIM, INSTALLATION .
  6. Install bolt (4) attaching seat belt anchor to floor pan. Tighten bolt to 100 N.m (74 ft. lbs.).
  7. Install rear seat cushion. Refer to COVER, SEAT CUSHION, INSTALLATION , COVER, SEAT CUSHION, FRONT, INSTALLATION or COVER, SEAT CUSHION, INSTALLATION .
