Rear - Center

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

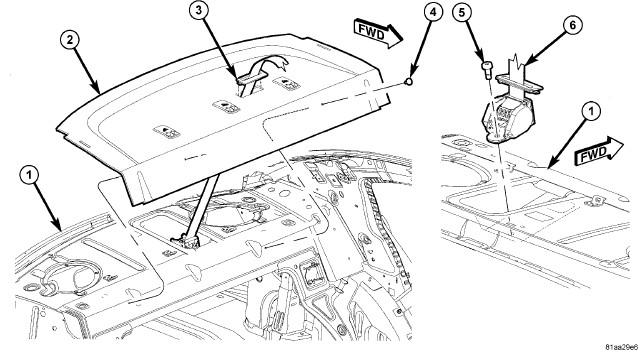

Fig 1: Removing/Installing Rear Center Seat Belt Retract
GC0122066Courtesy of CHRYSLER GROUP, LLC
WARNING:

Inspect the condition of the shoulder belt and lap belt. Replace any belt that is cut, frayed, torn, or damaged in any way. Also, replace the shoulder belt if the retractor is either damaged or inoperative.

  1. Remove the rear shelf trim panel (2). Refer to PANEL, REAR SHELF, REMOVAL .
  2. Remove the bolt (5) attaching the center rear seat belt retractor to the rear shelf (1).
    Fig 2: Removing/Installing Rear Seat Belt Buckle
    GC0122053Courtesy of CHRYSLER GROUP, LLC
  3. Remove nut (2) attaching center rear seat belt anchor (4) to floor pan.
  4. Remove the center rear seat belt retractor assembly from the vehicle.
