Front - Convertible

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

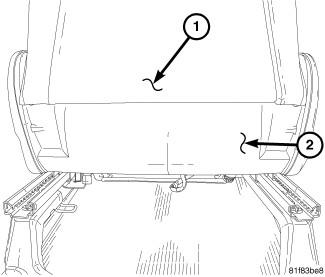

Fig 1: Seat Back Cover J-Clips
GC0122058Courtesy of CHRYSLER GROUP, LLC
  1. Move seat all the way forward.
  2. Disconnect and isolate the negative cable from the battery. Wait two minutes for the system capacitor to discharge before further service.
  3. Remove recliner handle. Refer to HANDLE, FRONT RECLINER, REMOVAL , Sedan or HANDLE, FRONT RECLINER, REMOVAL , Convertible.
  4. Remove outboard side shield. Refer to SIDE SHIELDS, SEAT CUSHION, FRONT, REMOVAL , Sedan or SIDE SHIELDS, SEAT CUSHION, FRONT, REMOVAL , Convertible.
  5. Remove seat belt anchor bolt.
  6. Disengage seat back cover J-clips.
  7. Remove lower outer shield (2).

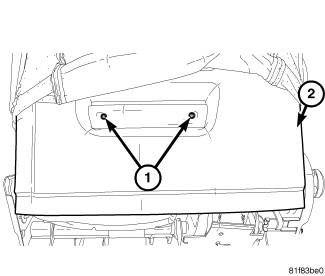

    Fig 2: Lower Inner Shield Fasteners & Slide Shield
    GC0122059Courtesy of CHRYSLER GROUP, LLC
  8. Remove lower inner shield fasteners (1) and slide shield (2) down and out of seat back cover.

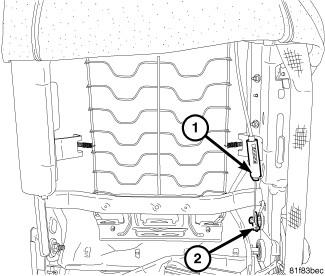

    Fig 3: Rear Entry Release Cable
    GC0122060Courtesy of CHRYSLER GROUP, LLC
  9. Disengage rear entry cable (2) and bracket (1).
  10. Remove rear entry cover, feeding seat belt through cover.
  11. Remove rear entry handle and cable from seat back.

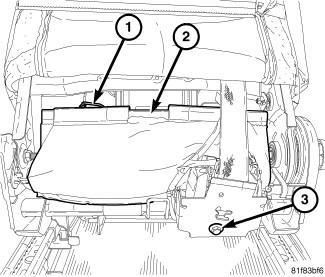

    Fig 4: Seat Belt Retractor Mounting Bolt
    GC0122061Courtesy of CHRYSLER GROUP, LLC
  12. Feed seat belt through seat back cover.
  13. Remove seat belt retractor mounting fastener (3).
  14. Disconnect electrical connector.
  15. Remove seat belt retractor from vehicle.
