WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

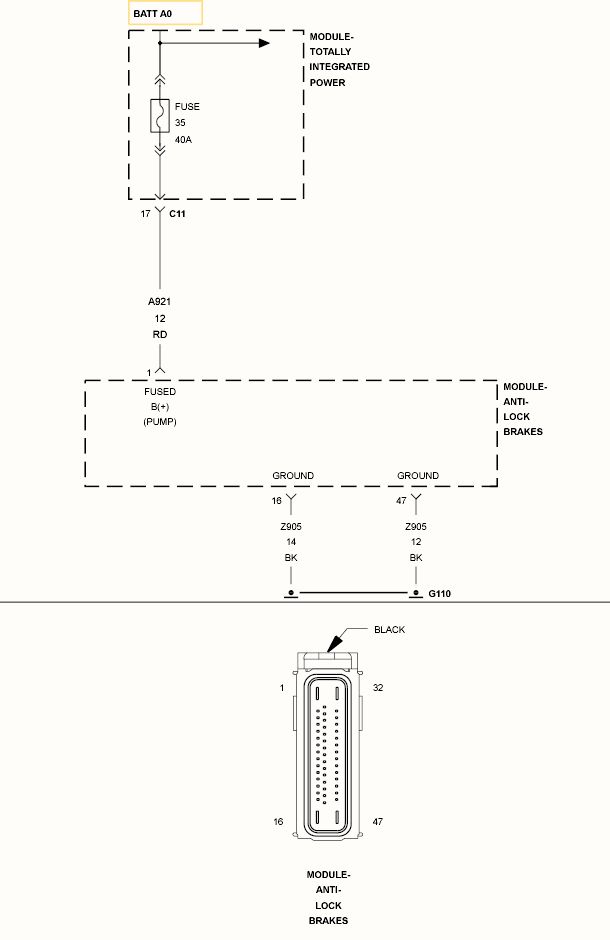

Fig 1: ABS Pump Motor Power Wiring Diagram
Courtesy of CHRYSLER GROUP, LLC
For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article
.
