Sensor, Wheel Speed, Rear: Removal: All-Wheel-Drive

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Before proceeding, refer to CAUTION and WARNING .

Fig 1: Identifying Rear Wheel Speed Sensor At Harness Connector

Courtesy of CHRYSLER GROUP, LLC

Move aside the luggage compartment carpet as necessary to access the wheel speed sensor cable connector.
Disconnect the wheel speed sensor cable connector (1) at the body wiring harness connector (2).
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

Fig 2: Tire & Wheel Mounting
Courtesy of CHRYSLER GROUP, LLC
Remove the wheel mounting nuts (3), then the rear tire and wheel assembly (1).

Fig 3: Identifying Rear Wheel Speed Sensor Mounting To Body
Courtesy of CHRYSLER GROUP, LLC
Remove the grommet (2) from the hole in the body (1) and pull the wheel speed sensor cable out through the hole.
Remove the speed sensor cable routing clip (3) from the outside frame rail.
Remove the screw (4) fastening the cable routing clamp (5) to the rear suspension crossmember (6).

Fig 4: Identifying WSS & Brake Line At Trailing Link
Courtesy of CHRYSLER GROUP, LLC
Remove the speed sensor cable routing clips (4) from the trailing link.
Remove the screw fastening the cable routing clamp to the trailing link.

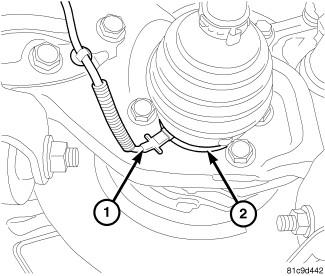

Fig 5: AWD Rear WSS AT Hub And Bearing
Courtesy of CHRYSLER GROUP, LLC
Unclip the wheel speed sensor head (1) from the spring-loaded retainer on the rear of the hub and bearing (2). Remove the sensor from the vehicle.
