Traction Control

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

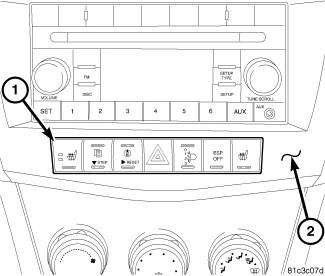

Fig 1: Identifying ASBM Location

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The Electronic Stability Control (ESC) may also be referred to as Electronic Stability Program (ESP) depending on the vehicle model year and configuration. Certain components may also reference ESP, ESC, or use the traction control symbol.

The traction control system that is part of the Electronic Stability Control (ESC), is an all-speed traction control. All-Speed Traction Control enhances mobility and prevents wheel slip when accelerating on slippery surfaces. It also provides a measure of directional stability control. Using the wheel-speed sensors, it can detect excessive yaw and help keep the car on the intended course, as for instance, when accelerating around a curve.

All-Speed Traction Control is effective up to 85 mph (137 km/h).

The traction control system may be turned off or on by depressing the ESC Off switch button located in the accessory switch bank module (1) located in the instrument panel center bezel (2).
