Cooler, Transmission Oil: Description: Description
WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
An external oil-to-air type automatic transmission oil cooler is mounted to the front of the radiator and is integral to the A/C condenser. The six upper tubes are used for transaxle oil cooling, and the remaining tubes below are for the A/C system.
The cooler uses tubes and rubber hoses to feed oil to and from the automatic transaxle. The replaceable inlet and outlet tubes use quick-connect type fittings. The trans oil cooler is replaced with the A/C condenser.

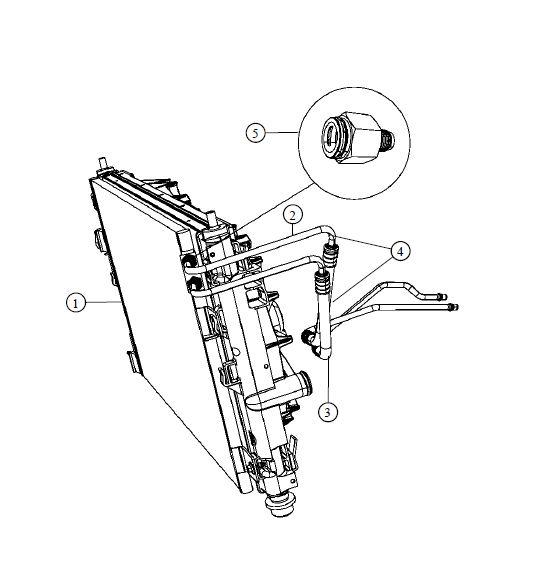

| 1-COOLER,Condenser and Trans Cooler |
| 2-HOSE AND TUBE,Oil Cooler Inlet |
| 3-HOSE AND TUBE,Oil Cooler Return |
| 4-HOSE,Transmission Oil Cooler,Pressure and Return |
| 5-CONNECTOR,Oil Cooler Hose |
