Coolant Adapter Mounted

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

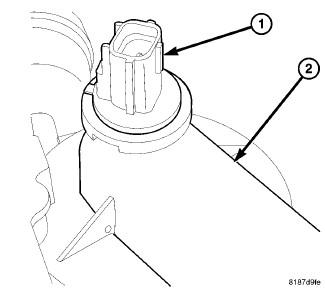

Fig 1: ECT Sensor & Coolant Adapter - Gas Engine
GC0120906Courtesy of CHRYSLER GROUP, LLC
1 - ETC
2 - COOLANT ADAPTER
  1. Disconnect negative battery cable.
  2. Partially drain cooling system below level of ECT Sensor (1).
  3. Disconnect ECT Sensor electrical connector.
  4. Remove ECT Sensor (1) by pressing the locking tab and twisting the sensor counter clockwise.
