Non-Pressure System
WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

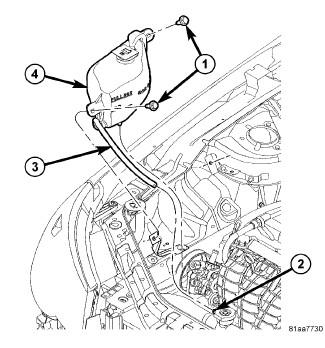

Courtesy of CHRYSLER GROUP, LLC
| 1 - BOLT |
| 2 - RADIATOR NIPPLE |
| 3 - HOSE |
| 4 - COOLANT RECOVERY CONTAINER - NON-PRESSURE |
- Disconnect the overflow hose (3) from radiator nipple (2).
- Remove coolant recovery container mounting bolts (1).
- Remove coolant recovery container (4).
