Pressure System

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

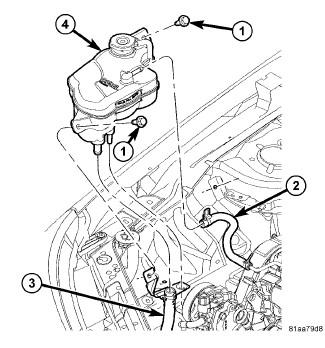

Fig 1: View Of Coolant Recovery Container - Pressure System
GC0120878Courtesy of CHRYSLER GROUP, LLC
  1. Connect hose (3) to coolant recovery container (4).
  2. Install coolant recovery container (4) in mounting position and install mounting bolts (1) Tighten bolts to 10 N.m (89 in. lbs.).
  3. Connect return hose (2) to the coolant recovery container (4).
  4. Fill cooling system. Refer to STANDARD PROCEDURE .
