Grille, Defroster: Removal: Removal

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

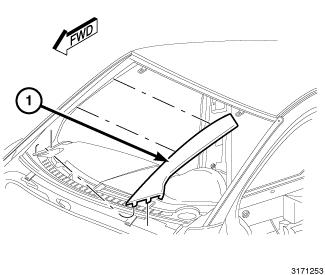

Fig 1: A-Pillar Trim Panels

Courtesy of CHRYSLER GROUP, LLC

Disconnect the negative battery cable.
Remove the A-Pillar trim (1). Repeat on the opposite side.

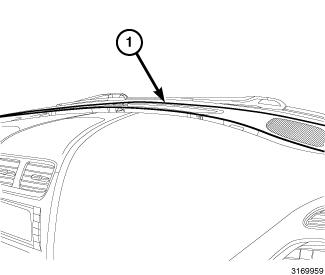

Fig 2: Defroster Grille
Courtesy of CHRYSLER GROUP, LLC
Using trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the retaining clips and pull up and rearward to remove the defroster grille (1).
