Shield, Splash, Rear Wheelhouse: Removal: Removal

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

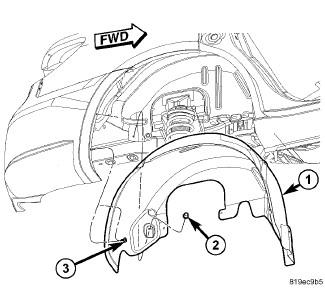

Fig 1: Rear Splash Shield, Push Pin & Fastener
GC0122954Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rear wheel in relation to the splash shield being removed. Refer to REMOVAL .
  2. Remove push pin (2) from splash shield (1).
  3. Remove fastener (3) from splash shield (1).

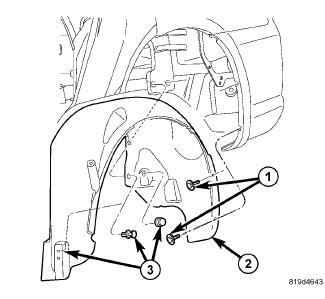

    Fig 2: Rear Splash Shield, Push Pins & Fasteners
    GC0122955Courtesy of CHRYSLER GROUP, LLC
  4. Remove fasteners (1) from splash shield (2).
  5. Remove pushpins (3) from splash shield (2).
