Section 452 (Body - Interior & Exterior): Exterior: Nameplate: Removal: Removal
WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

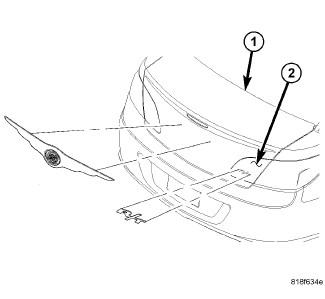

Exterior nameplates are attached to body panels with adhesive tape.
- Apply a length of masking tape on the body, parallel to the top edge of the nameplate to use as a guide, if necessary.
- If temperature is below 21°C (70°F) warm emblem with a heat lamp or gun. Do not exceed 52°C (120°F) when heating emblem.
- Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, from behind the emblem to separate the adhesive backing from the body.
- Clean adhesive residue from body with MOPAR® Super Kleen solvent or equivalent.
