Prop, Gas, Convertible DECKLID: Removal: Removal

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Support Cylinder Removal/Installation

Courtesy of CHRYSLER GROUP, LLC

Open decklid the conventional way.
Using a small flat blade (3) or equivalent, place under the steel clip ()2(and pry up away from the pivot ball (4).
At the same time you are prying up the steel clip (2), pull the prop end (1) away from the pivot ball (4).

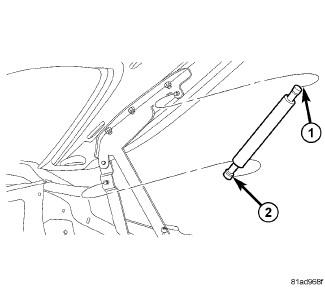

Fig 2: Decklid Gas Prop Rod
Courtesy of CHRYSLER GROUP, LLC
Repeat Step 2 and for the other ball and socket end of the gas prop refer to Step 3.
Remove the gas prop from the decklid.
