Drain Tube - Body

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

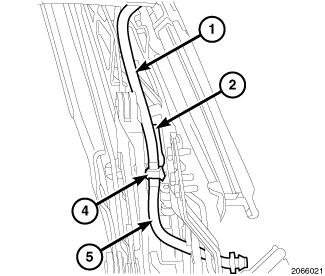

Fig 1: Central Rail, Y-Fitting & Drain Tubes
GC0122911Courtesy of CHRYSLER GROUP, LLC
  1. Place the convertible top in the vertical position.
  2. Remove the center rail trim panel by removing the lower pushpins and carefully pulling the trim away from the convertible top center rail.
  3. Disconnect the drain tube (3) from the Y-fitting (4).
  4. Disconnect the drain tube from the vehicle and remove.
