Lamp, Center High Mounted Stop: Removal: Removal: Dodge
WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

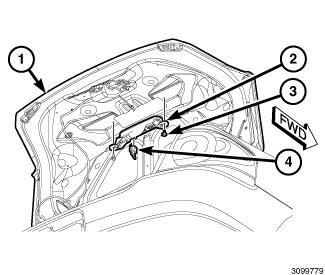

Fig 1: Deck Lid, Body Wire Harness Connector & Center High-Mounted Stop Lamp (CHMSL) (2) Connector Receptacle
- Disconnect and isolate the battery negative cable.
- With the deck lid (1) in the open position, disconnect the body wire harness connector (4) from the Center High-Mounted Stop Lamp (CHMSL) (2) connector receptacle.
- Remove the two screws (3) that secure the CHMSL to the deck lid inner reinforcement.
- Unsnap the CHMSL from the inside of the deck lid CHMSL opening.
- Remove the CHMSL from the vehicle.
