Fixed Displacement A/C Compressor
WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

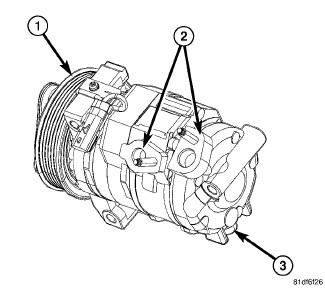

Denso 10SR17 shown in illustration. Denso 10SR18 similar.
3.6L models are equipped with the Denso 10SR18 A/C compressor (1). This A/C compressor is a fixed displacement, five double-acting piston, reciprocating swash plate-type compressor with a displacement of 180 cubic centimeters (10.9 cubic inches). The A/C compressor is clutch operated, with the suction and discharge ports (2) and integral high pressure relief valve (3) located near the rear of the compressor. The A/C compressor is secured to the engine with three bolts.
A label identifying the use of R-134a refrigerant and ND-8 PAG oil is located on the A/C compressor.
