Instrument Panel

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Take the proper precautions to protect the instrument panel cover and the center bezel from cosmetic damage while performing these procedures.

NOTE:

Dodge model shown in illustration. Chrysler model similar.

Fig 1: Center Air Outlet, Four Retaining Clips & Center Bezel

Courtesy of CHRYSLER GROUP, LLC

If servicing a center air outlet (1 and 3):
- Position the outlet to the center bezel (2) and engage the four plastic retaining clips (4 and 5).
- Install the center bezel.

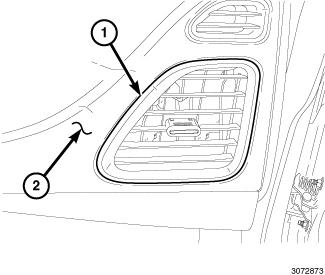

Fig 2: Outboard Air Outlet & Instrument Panel Cover
Courtesy of CHRYSLER GROUP, LLC
If servicing an outboard air outlet (1), position the outlet to the instrument panel cover (2) and engage the five metal retaining clips.
