Center Duct

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

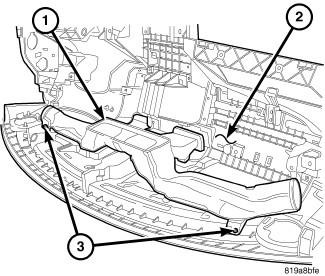

Fig 1: Instrument Panel Center Duct
GC0123387Courtesy of CHRYSLER GROUP, LLC
  1. Remove the instrument panel and place it on a workbench. Refer to PANEL, INSTRUMENT, REMOVAL .
  2. Remove the left and right instrument panel air outlets. Refer to OUTLET, AIR, REMOVAL .
  3. Remove the outer instrument panel ducts.
  4. Remove the instrument panel top pad. Refer to PAD, INSTRUMENT PANEL, REMOVAL .
  5. Remove the demister ducts. Refer to DUCT, INSTRUMENT PANEL DEMISTER, REMOVAL .
  6. Remove the defroster duct. Refer to DUCT, DEFROSTER, REMOVAL .
  7. Remove the screws (3) that secure the center instrument panel duct (1) to the instrument panel top cover (2).
  8. Disengage the center instrument panel duct from the instrument panel top cover and remove the duct.
