Sedan Model

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Take the proper precautions to protect the front face of the overhead console from cosmetic damage while performing this procedure.

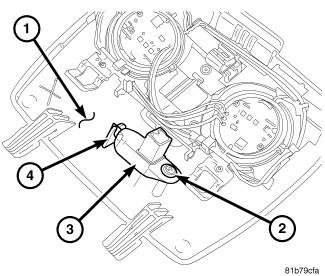

Fig 1: Infrared Sensor - Sedan

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Typical overhead console shown in illustration. Infrared sensor location may vary by model.

Disconnect and isolate the negative battery cable.
Remove the overhead console (1) from the headliner and place it on a workbench. Refer to CONSOLE, OVERHEAD, FRONT, REMOVAL .
Remove the screw (2) that secures the infrared sensor (3) to the back of the overhead console and remove the sensor.
