Shroud, Steering Column, Upper: Installation: Installation
WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
- Position the upper shroud over the steering column.

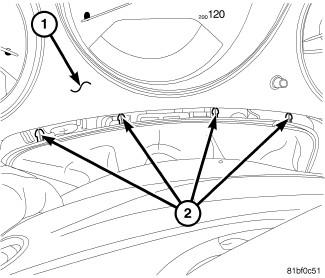

- Align the four upper shroud gap hider retaining tabs (2) with the mounting holes in the instrument cluster (1), then push the tabs upward, securing the shroud.
- Align the two shroud gap hider side retaining tabs (one each side) with the mounting holes, then push the tabs into place, securing the shroud.
- Push the column tilt lever (2) downward (released position).
- Install the lower shroud (2) over the tilt lever and onto the column.
- Install the upper shroud onto the lower shroud, clipping the shrouds to one another.
- Install the three screws (1) attaching the lower shroud to the steering column.
- Position the column tilt (5) at the full-upward position.
- Push the tilt lever upward, locking the column in place.
- Install the steering column cover reinforcement (1) using the four mounting screws (2).
- Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
