Insulator, Engine Mount, Left: Removal: Removal

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL .
  3. Remove the front fore and aft crossmember. Refer to CROSSMEMBER, FRONT FORE AND AFT, REMOVAL .
  4. Lower the vehicle.

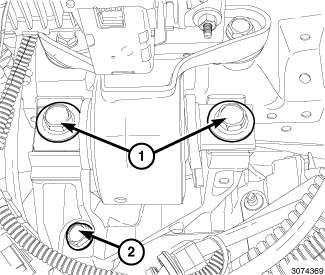

    Fig 1: Transmission Mount & Bolts
    GC0147074Courtesy of CHRYSLER GROUP, LLC
  5. Carefully position a floor jack under transmission to support the transmission.
  6. Remove the two transmission mount to transmission bolts (1).
  7. Remove the PCM. Refer to REMOVALREMOVAL .

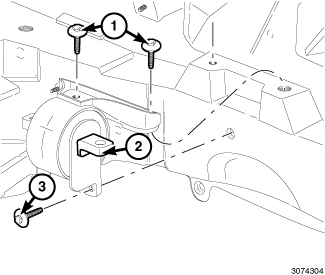

    Fig 2: Left Transmission Mount Isolator & Bolts
    GC0147073Courtesy of CHRYSLER GROUP, LLC
  8. Raise the vehicle up enough to gain access to the two lower transmission isolator bolts (3).
  9. Remove the two upper bolts (1) and one lower bolt (3) from the left transmission mount isolator (2).
