Manifold, Intake: Removal: Removal

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Release fuel system pressure before servicing system components. Service vehicles in well ventilated areas and avoid ignition sources. Never smoke while servicing the vehicle.

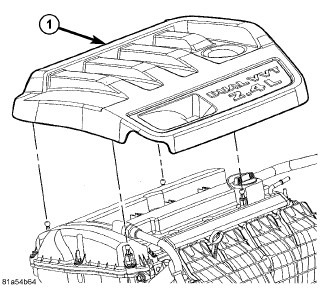

Fig 1: Engine Cover

Courtesy of CHRYSLER GROUP, LLC

Remove engine cover (1).
Perform fuel system pressure release procedure before attempting any repairs. Refer to FUEL DELIVERY, GAS STANDARD PROCEDURE .

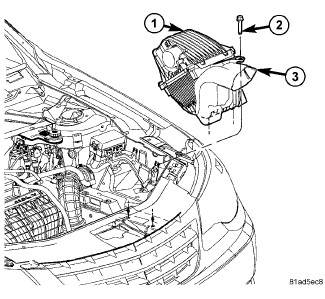

Fig 2: Air Cleaner Housing Assembly
Courtesy of CHRYSLER GROUP, LLC
Remove air cleaner housing (1).

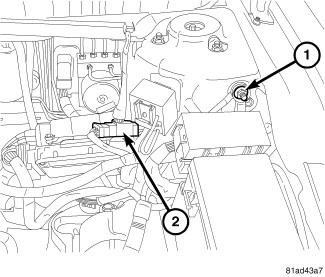

Fig 3: Battery Cables
Courtesy of CHRYSLER GROUP, LLC
Disconnect negative battery cable (1).

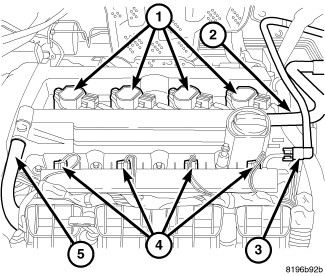

Fig 4: Ignition Coils, Air Hose, Fuel Line, Injectors & PCV Hose
Courtesy of CHRYSLER GROUP, LLC
Disconnect fuel line at rail (3).
Remove fuel injector electrical connectors (4).
Remove fuel rail retaining bolts and remove fuel rail.

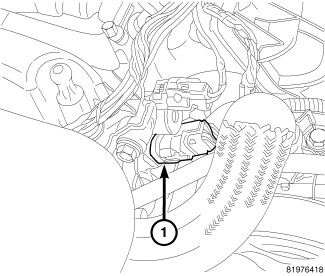

Fig 5: Oil Temperature Sensor
Courtesy of CHRYSLER GROUP, LLC
Disconnect oil temperature sensor (1).
Disconnect variable valve timing solenoid electrical connector.
Disconnect intake camshaft position sensor electrical connector.
Position harness out of the way.

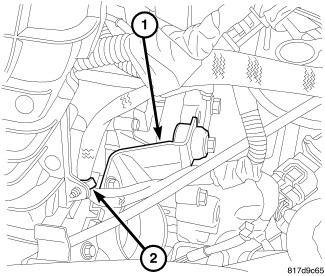

Fig 6: Throttle Body Support Bracket & Wiring Harness Retainer
Courtesy of CHRYSLER GROUP, LLC
Remove throttle body support bracket (1).
Disconnect electronic throttle control electrical connector.
Remove wiring harness retainer from the intake manifold (2).
Disconnect MAP sensor electrical connector.
Disconnect vacuum lines at intake.

Fig 7: Intake Bolt Removal/Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Remove intake manifold retaining bolts.
Remove intake manifold.
