Cooler, Oil: Installation: Installation

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

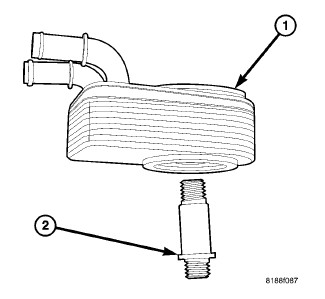

Fig 1: Oil Cooler Mounting
GC0121500Courtesy of CHRYSLER GROUP, LLC
  1. Replace oil cooler seal (1).
  2. Lubricate seal and position oil cooler to oil filter adapter, aligning notch to tab.
  3. Install oil cooler connector bolt (2). Tighten connector bolt to 49 N.m (36 ft. lbs.).

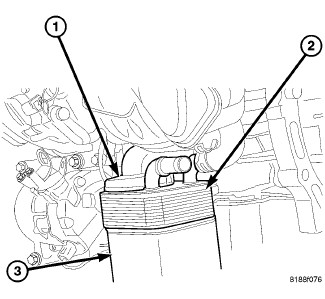

    Fig 2: Identifying Oil Cooler
    GC0121501Courtesy of CHRYSLER GROUP, LLC
  4. Install oil filter (3).
  5. Connect oil cooler coolant hose.
  6. Lower vehicle.
  7. Fill cooling system. Refer to STANDARD PROCEDURE .
