Insulator, Engine Mount, Left: Removal: Removal

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Air Cleaner Housing Assembly
GC0121483Courtesy of CHRYSLER GROUP, LLC
  1. Remove the air cleaner body (1). Refer to BODY, AIR CLEANER, REMOVAL .
  2. Disconnect and isolate the negative battery cable.
  3. Remove the PCM and PCM mounting bracket. Refer to MODULE, POWERTRAIN CONTROL, REMOVAL .

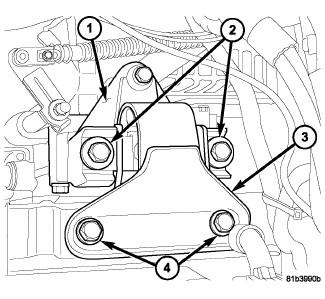

    Fig 2: Left Engine Mount & Bolts
    GC0121484Courtesy of CHRYSLER GROUP, LLC
  4. Support the transaxle with a suitable jack.
  5. Remove the mount to transaxle bolts (2).
  6. Remove the left mount to frame rail fasteners (4).

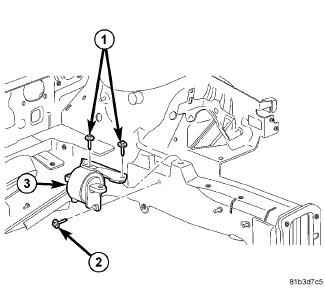

    Fig 3: Left Mount Isolator & Bolts
    GC0121485Courtesy of CHRYSLER GROUP, LLC
  7. Lower the transaxle to gain access to the mount to frame rail fastener (2).
  8. Remove the mount isolator (3).
