Engine Block: Crankshaft: Removal: Removal

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

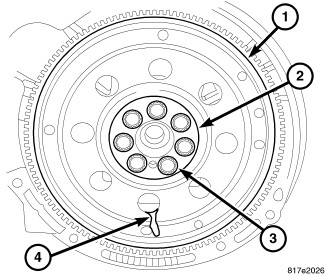

Fig 1: Flex Plate
GC0121446Courtesy of CHRYSLER GROUP, LLC
NOTE:

Crankshaft can not be removed when engine is in vehicle.

  1. Remove engine assembly from vehicle. Refer to REMOVAL .
  2. Separate transaxle from engine.
  3. Remove flex plate/flywheel (1).
  4. Remove crankshaft rear oil seal. Refer to SEAL, CRANKSHAFT OIL, REAR, REMOVAL .
  5. Mount engine on a suitable repair stand.

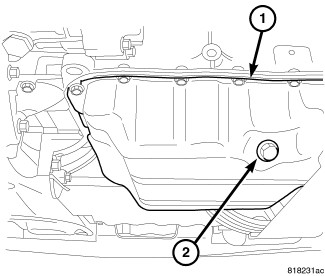

    Fig 2: Oil Drain Plug & Oil Pan
    GC0121447Courtesy of CHRYSLER GROUP, LLC
  6. Drain engine oil (2).

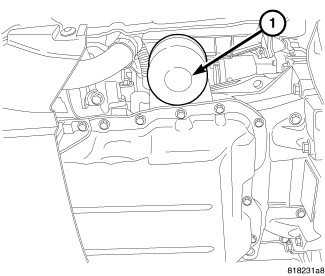

    Fig 3: Oil Filter
    GC0121448Courtesy of CHRYSLER GROUP, LLC
  7. Remove oil filter (1).

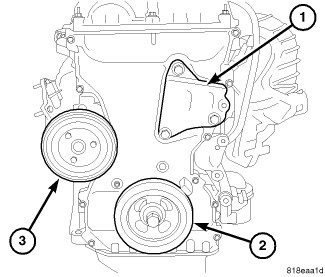

    Fig 4: Engine Mount Support Bracket, Crankshaft Vibration Damper & Water Pump Pulley
    GC0121449Courtesy of CHRYSLER GROUP, LLC
  8. Remove crankshaft vibration damper (2). Refer to DAMPER, VIBRATION, REMOVAL .
  9. Remove water pump pulley (3).
  10. Remove engine mount support bracket (1).

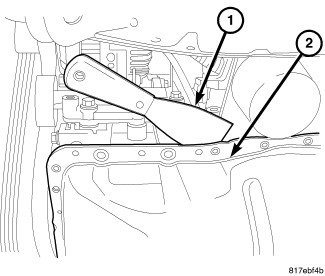

    Fig 5: Using Putty Knife To Loosen Seal Around Oil Pan
    GC0121450Courtesy of CHRYSLER GROUP, LLC
  11. Remove the oil pan (2). Refer to PAN, OIL, REMOVAL .
  12. Remove timing chain cover Refer to COVER(S), ENGINE TIMING, REMOVAL .
  13. Remove the timing chain. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL .
  14. Remove balance shaft module.

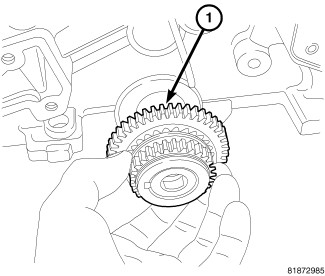

    Fig 6: Crankshaft Sprocket
    GC0121451Courtesy of CHRYSLER GROUP, LLC
  15. Remove the crankshaft sprocket (1).

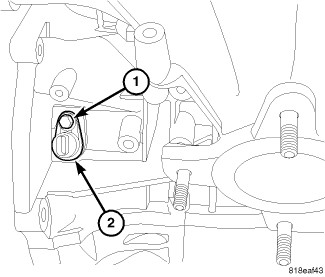

    Fig 7: Crankshaft Position Sensor & Bolt
    GC0121452Courtesy of CHRYSLER GROUP, LLC
  16. Remove crankshaft position sensor retaining bolt (1) and remove sensor (2).
  17. Remove ladder frame. Refer to FRAME, LADDER, REMOVAL .

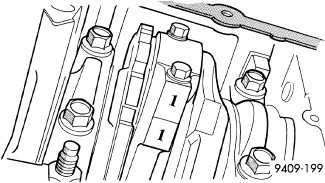

    Fig 8: Connecting Rod Bolts & Caps
    GC0121453Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    If piston/connecting rod replacement is necessary, remove cylinder head. Refer to CYLINDER HEAD, REMOVAL .

    CAUTION:

    DO NOT use a number stamp or a punch to mark connecting rods. Damage to connecting rod could occur.

  18. Using a permanent ink or paint marker, identify cylinder number on each connecting rod and cap.
  19. Remove all connecting rod bolts and caps. Care should be taken not to damage the fracture rod and cap surfaces.

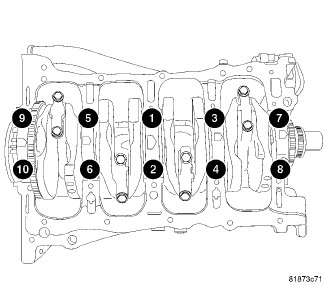

    Fig 9: Main Bearing Cap Removal/Installation Sequence
    GC0121454Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Do not reuse connecting rod bolts.

  20. Remove main bearing caps.
    CAUTION:

    Use extreme care when handling crankshaft. Tone wheel damage can occur if crankshaft is mis-handled.

  21. Lift out crankshaft from cylinder block. Do not damage the main bearings or journals when removing the crankshaft.
