Transponder, Tire Pressure Monitoring (TPM): Removal: Front

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheelhouse splash shield at the transponder requiring service. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .

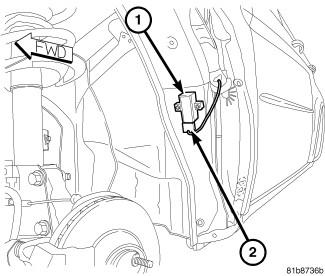

    Fig 1: Identifying Left Rear TPM Transponder
    GC0122798Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the wiring harness connector (2) at the transponder (1).
  3. Remove the mounting nuts, then remove the transponder (1).
