U113E-00-Lost Communication With Intelligent Battery Sensor: Notes

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

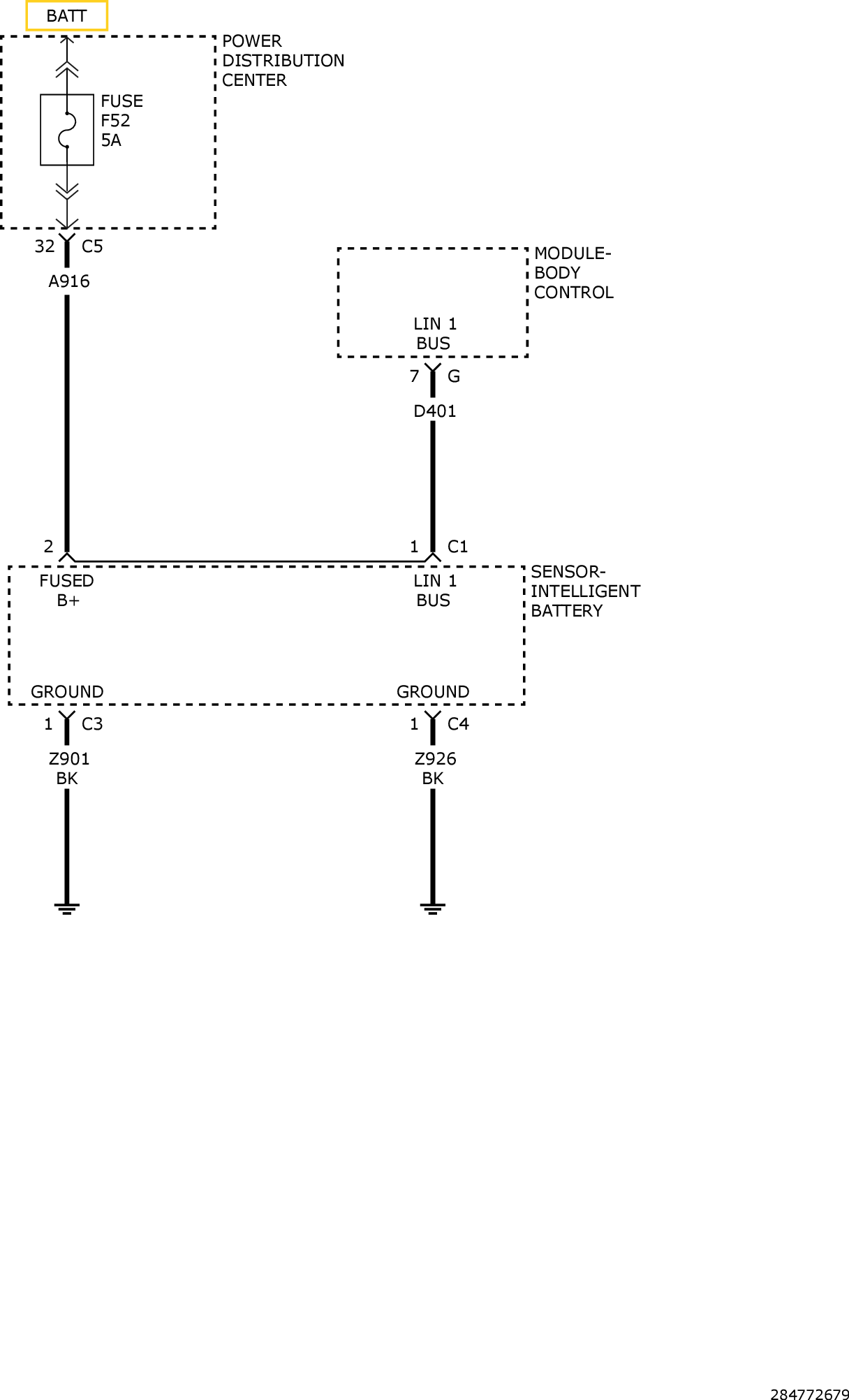

Fig 1: Intelligent Battery Sensor Circuit Wiring Diagram
GC0156822Courtesy of CHRYSLER GROUP, LLC
