MODULE, Totally Integrated Power (TIPM): Removal: Removal
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.

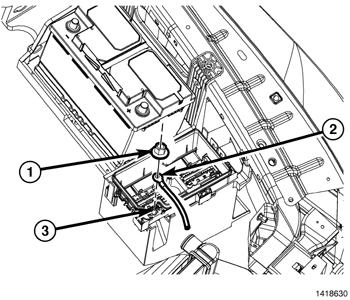

- Remove the B+ terminal nut (1) from the Totally Integrated Power Module (3) (TIPM) B+ terminal. Remove the B+ cable (2) from the TIPM.
- Using a suitable flat blade tool, disengage the TIPM upper retaining tabs from the battery tray bracket (3).
- Grasp the TIPM (1) and rotate the assembly up to free it from its mounting bracket (3). Position the assembly upside down to access the electrical connectors located on the bottom of the unit.

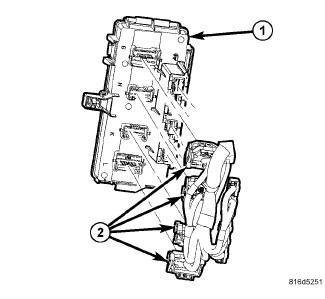

- Disconnect the electrical connectors (2) by depressing the locking tab and rotating the connector arm outboard, until the connector is free from the TIPM assembly (1). Be certain to pull the connectors straight off.
- Remove the TIPM (1) from the vehicle.
